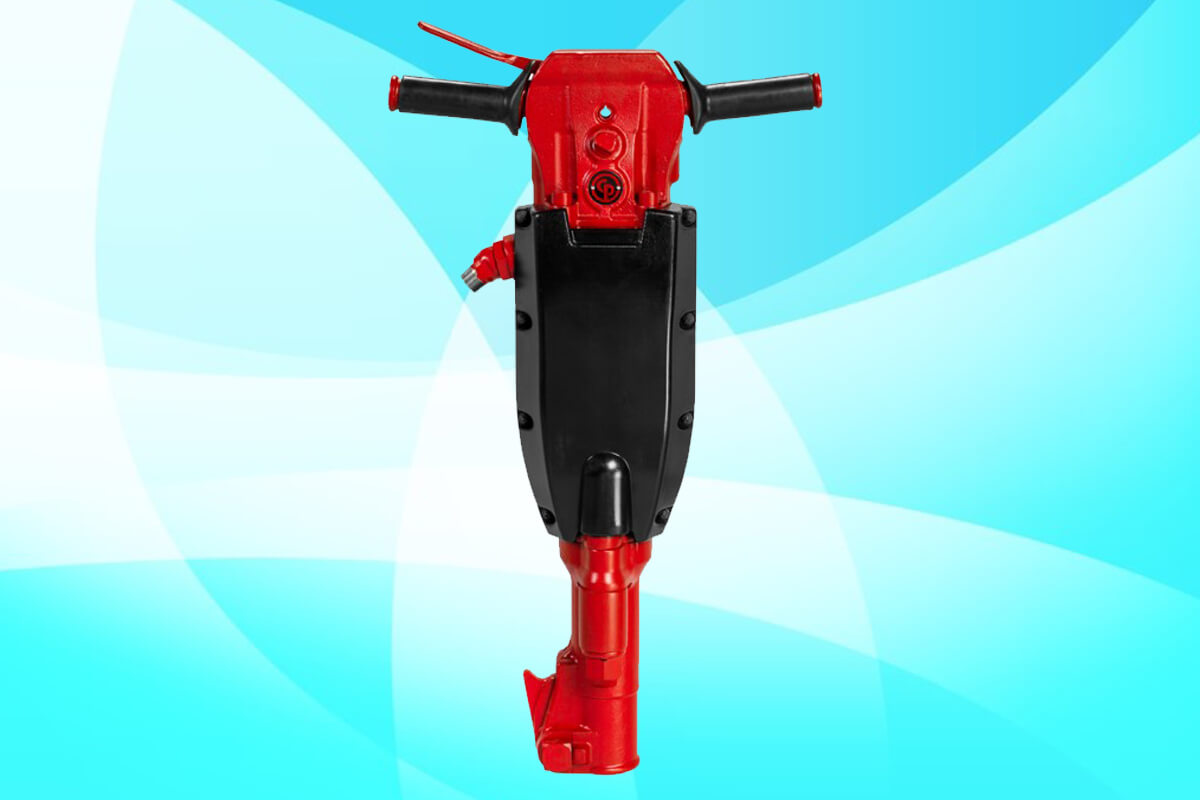

CP 117 breaker is designed to deliver the power and durability necessary for a variety of construction and plant maintenance applications such as breaking heavy concrete, reinforced concrete, frozen ground, boulders and pavements, ect. We are offering Quality assured after market part of CP Breakers.
Ingersoll-Rand portable diesel engine screw air compressor375CFM – 600CFM,750CFM – 825CFM, 750-1500CFM High-pressure compressor Ingersoll-Rand portable diesel engine screw air compressor375 CFM – 600 CFM At Doosan (Ingersoll-Rand)

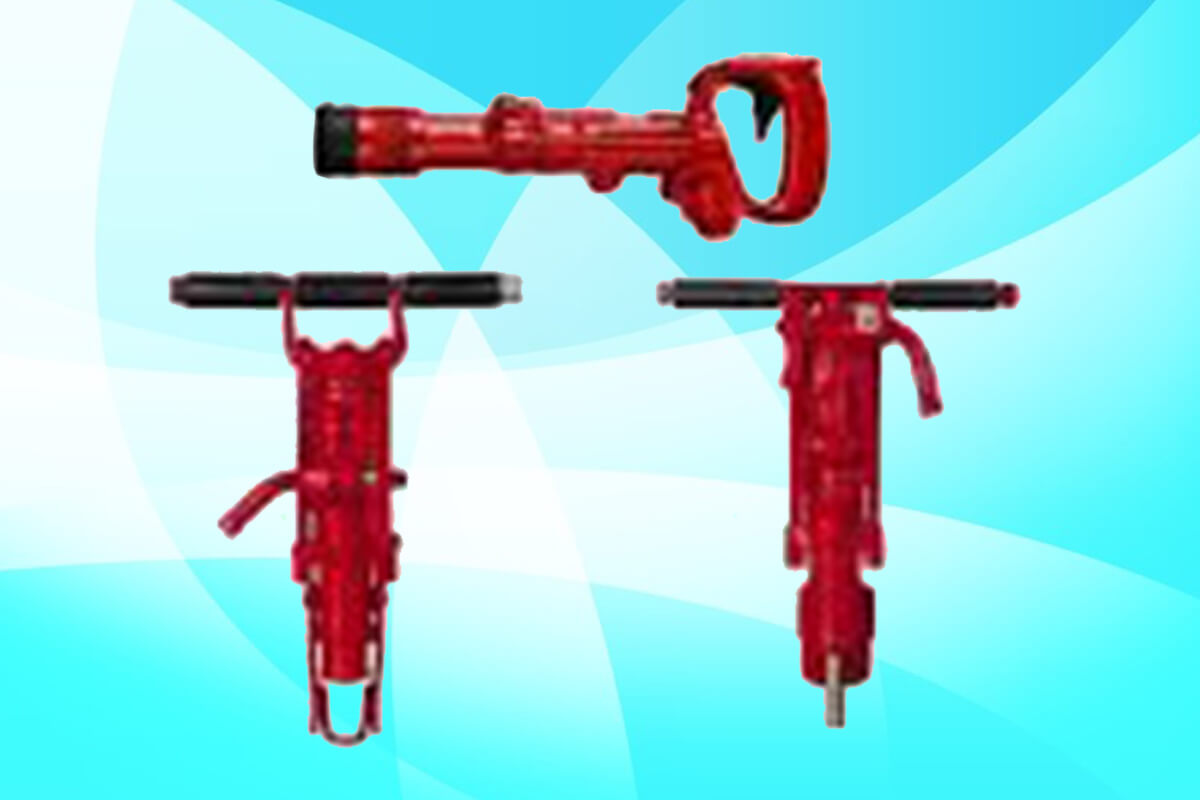

Rock Drills are used for quarry, mining in ores, trenching & general excavation involving short holes. It is the everyday tool for the small job. Rock drills are also used for marble-granites industries.
Rock Drills can be used for the holes upto 20 feet or over but are most efficient when confined to holes of not over 10 to 12 feet. Rock drills are designed to fight the hardest materials created by nature-rock & ore.
We are suppliers of Rock Drilling Machine, Hand Held Rock Drilling Machine, Portable Rock Drilling Machine, Jack Hammer in India. Our Jack Hammers are skillfully designed and made to precision. Each component of the machine is made from alloy steel and then given the correct heat treatment. They are then grinded to close tolerances, I finally to be assembled into an efficient rock drill.
This air flushed, medium heavy duty Rock drill is used for a variety of surface drilling applications in quarries and construction sites. It is capable of drilling 27-40 mm diameter holes with H22 Integral/Extension steels up to a depth of 6 M. Drillman model DM 041 is a powerful Rock drill with proven performance.
| Type | Model | Weight in Kg. | Air Requirement | Penetration Rate Mm/Min | Rotation Speed RPm | Impact Per Min | Hose Connection Air MM | |
| (at 6 Bar M³/min | (at 92 psi cfm) | |||||||
| DRY | DM 041 | 25.00 | 2.4 | 119 | 425 | 215 | 2000 | 19 |

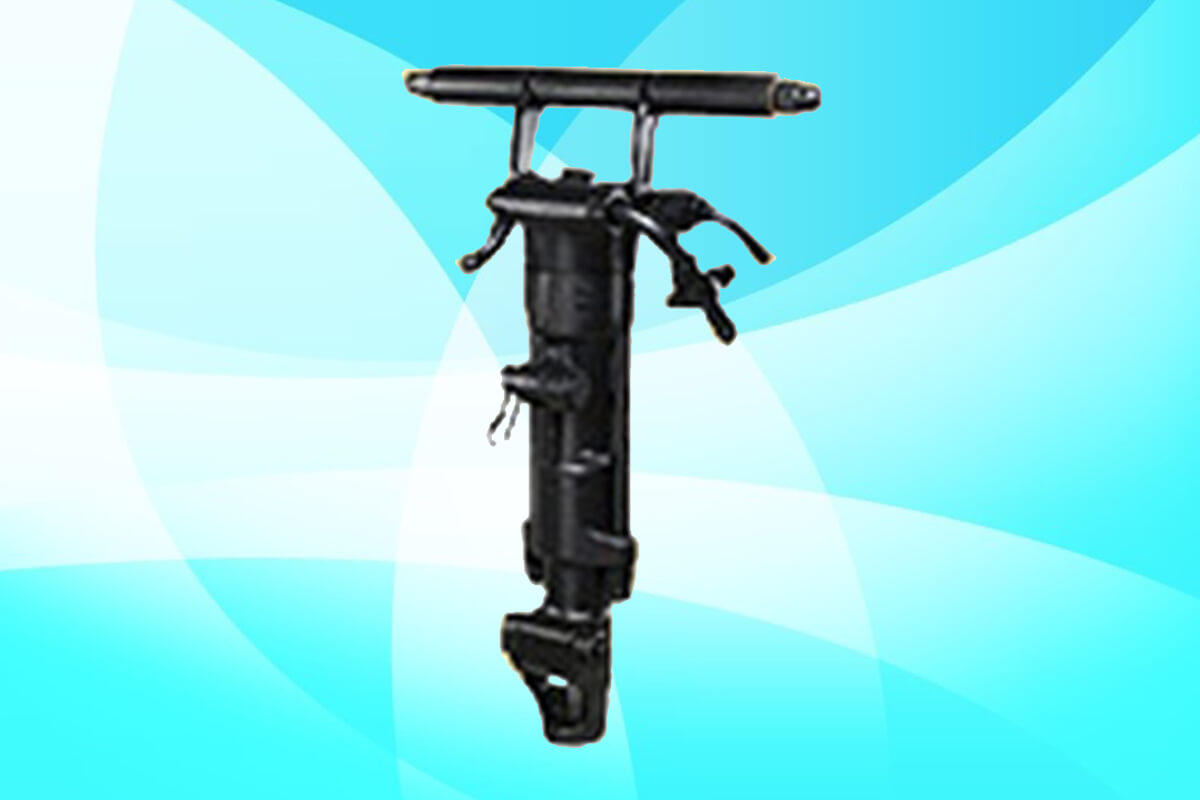

This water flushed Rock drill is used in underground mines and tunnels for horizontal or inclined drilling in conjunction with Pusher leg. It is capable of drilling 27-40 mm diameter holes with H22 integral steels up to a depth of 6 M. Drillman model DM 041 W is one of the most reliable Rock drill available for underground application. It has low air consumption and a very high drilling rate in relation to weight
| Type | Model | Weight in Kg. | Air Requirement | Penetration Rate Mm/Min | Rotation Speed RPm | Impact Per Min | Hose Connection | ||
| Air MM | Water MM | ||||||||
| (at 6 Bar M³/min | (at 92 psi cfm) | ||||||||
| WET | DM 041 W | 26.00 | 2.9 | 101 | 60 | 2050 | 410 | 19 | 12.5 |
Rock Drills are used for quarry, mining in ores, trenching & general excavation involving short holes. It is the everyday tool for the small job. Rock drills are also used for marble-granites industries.
Rock Drills can be used for the holes upto 20 feet or over but are most efficient when confined to holes of not over 10 to 12 feet. Rock drills are designed to fight the hardest materials created by nature-rock & ore.
High drilling capacity and low maintenance cost are two of the distinctive features of Drillman handheld rock drills. Used in combination with portable compressors or tractor mounted compressors & drill steel, they guarantee low operation cost.
The high power-to-weight ratios and compact, versatile designs of Drillman rock drills enable simple positioning and easy handling. Their high penetration means you get the job done quickly for maximum productivity.
The extra flushing air valve is a special feature that provides simple, rapid cleaning of the drill hole for increased operational efficiency. To simplify the changing of drill steels, the drills are designed with a robust klck-1atch retainer that locks the drill steel into position.
