KULMEC - Screw Electric Air Compressor On Rental

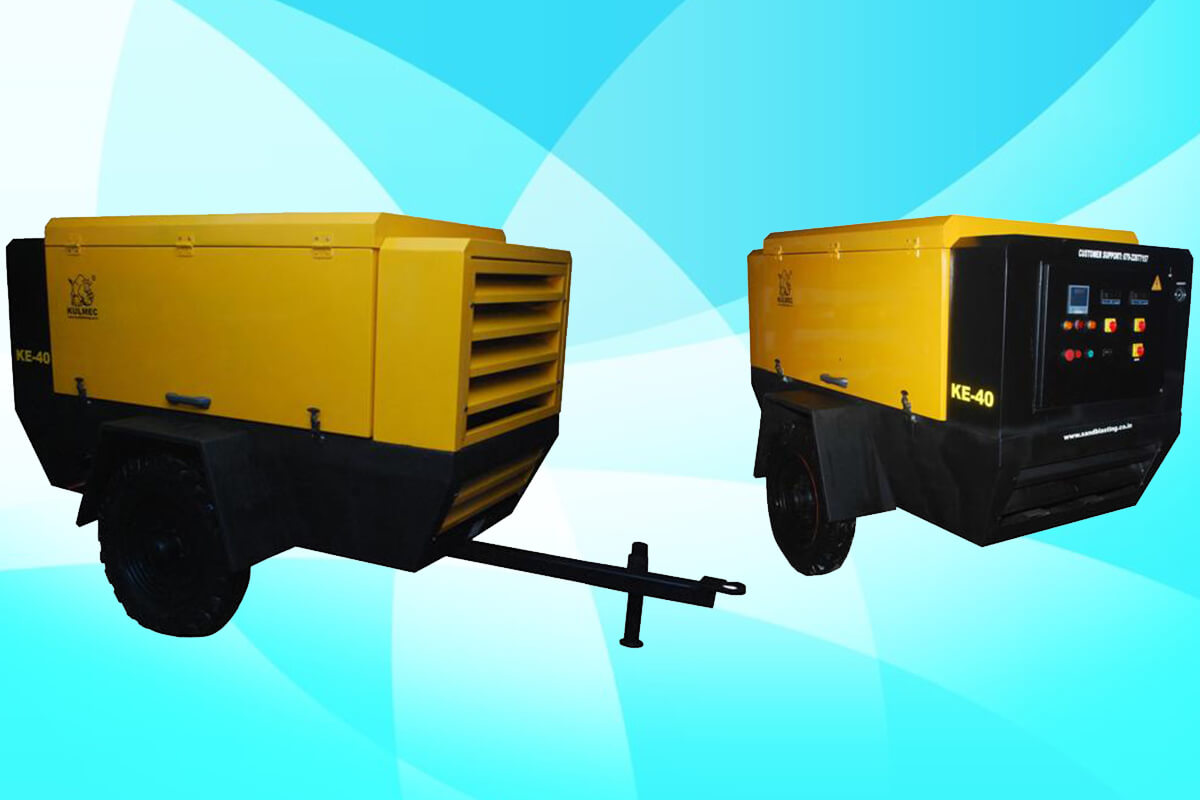

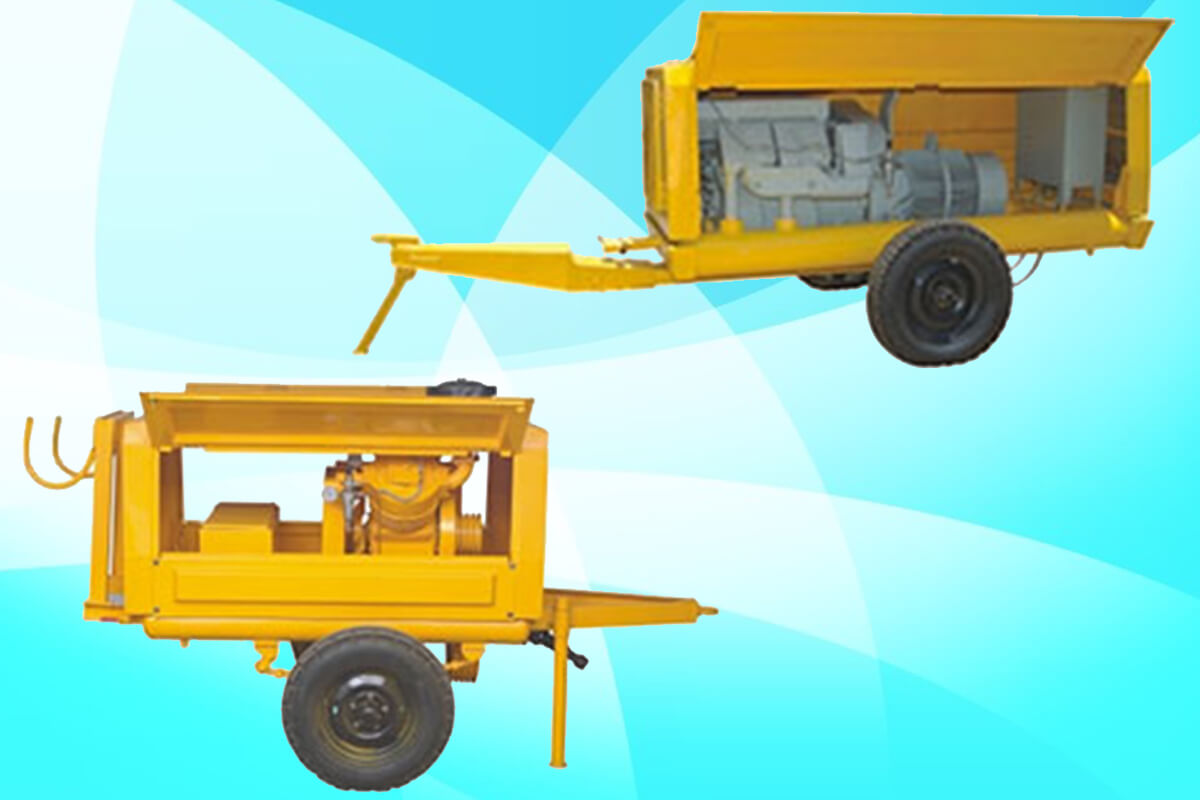

ELECTRIC Driven Air compressor – APE Series

Compressor Type	Pressure Variant	Max. Working Pressure		Capacity FAD			Installed Motor Power
Compressor Type	Pressure Variant	Bar (e)	psig	l/s	M3/min	cfm	kW	hp
KE 30	10	10	157	51	3.1	107	22	30
KE 30	13	13	181	45	207	98	22	30
KE 40	10	10	145	82	4.9	175	30	40
KE 40	13	13	189	71	4.3	151	30	40
KE 50	10	10	145	102	6.1	216	37	50
KE 50	13	13	189	85	5.1	180	37	50
KE 60	10	10	145	128	7.7	270	45	60
KE 60	13	13	189	105	5.4	225	45	60
KE 75	10	10	145	156	9.5	331	55	75
KE 75	13	13	189	117	10.6	375	55	75
KE 100	10	10	145	210	12.6	445	75	100
KE 100	13	13	189	177	10.6	375	75	100
KE 125	10	10	145	250	15.0	529	90	125
KE 125	13	13	189	216	13.0	458	90	125

Application:

Mines and Quarries
Pipeline Laying Bore cleaning.
Construction sites
Abrasive blasting sites
Cement Plants

Features:

Trident Refrigeration Dryers are suitable for all compressed air systems like :

Installed on highly efficient Crompton Greaves motor and L&T Starter.
Higher life & low maintenance.
Kulmec Compressor spares are easily available in market.
Weight of the compressor is much lower than any other compressor, it is easy to move compressor to other site.
Kulmec Compressor is mounted on two wheel trolley with leaf spring, so it can be tow by vehicles like jeep or tractor.
Whole compressor unit is compact.
Installed on Silent Canopy.
Air Compressor is installed with micro filters to withstand dusty conditions.
Efficient work in hostile conditions.

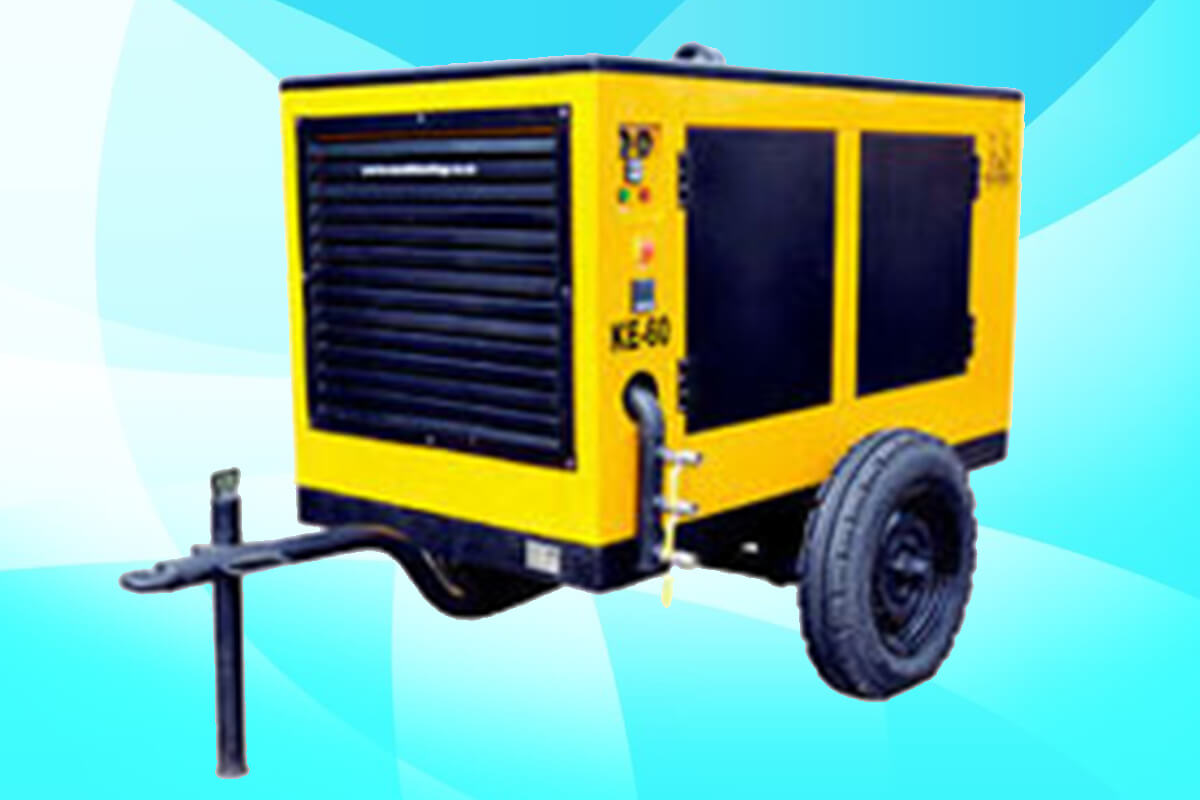

Screw Compressor 60 HP

We are Supplier of KULMEC quality Air Compressor

Specification

Screw Air Compressor Model KE – 60
300 CFM, With Covered Body (Canopy)
Screw Compressor with 60 HP Electric Motor Mounted
Normal Working Pressure 8 KG
Maximum Working Pressure 12 KG
Trolley Mounted

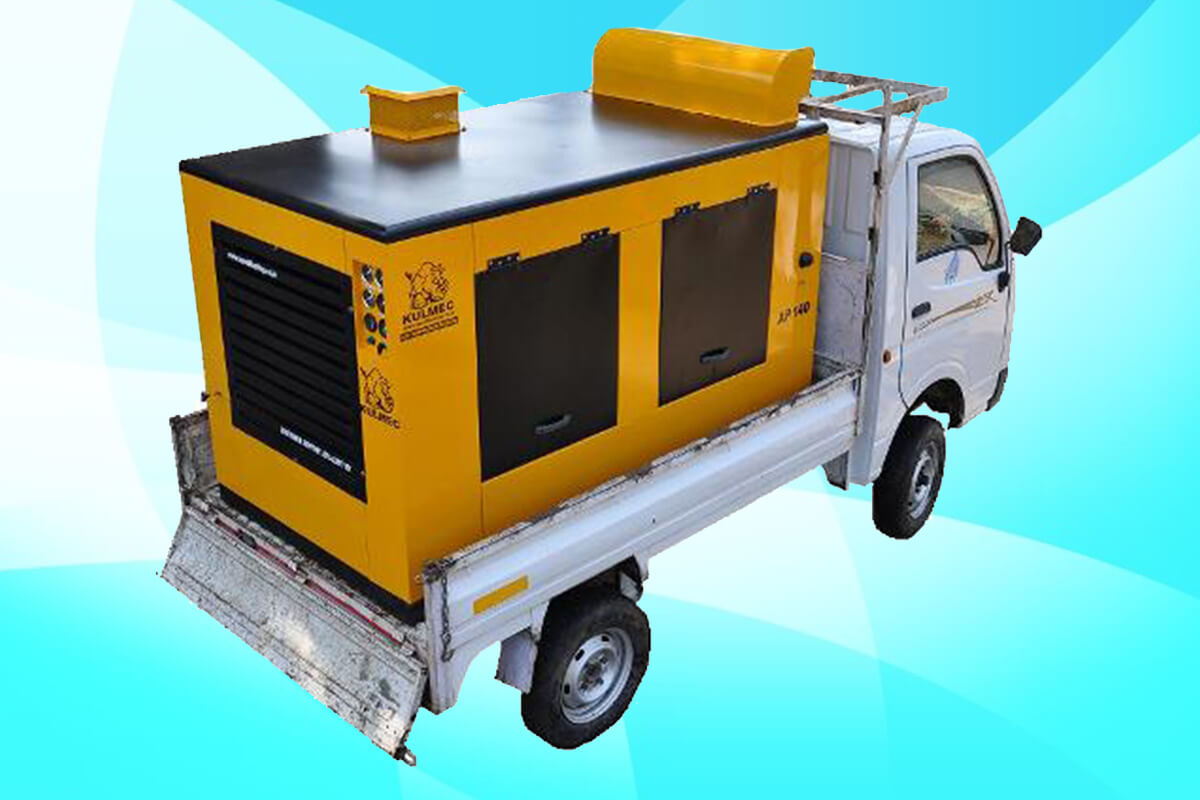

Screw Compressor 100 HP

We are Supplier Kumec screw air compressor from 20 HP to 100 HP screw air compressors

Specification:

Screw Air Compressor Model KE – 100
500 CFM, With Covered Body (Canopy)
Screw Air Compressor
100 HP Electric Motor Mounted
Normal Working Pressure 7 KG
Maximum Working Pressure 13 KG
Trolley Mounted
