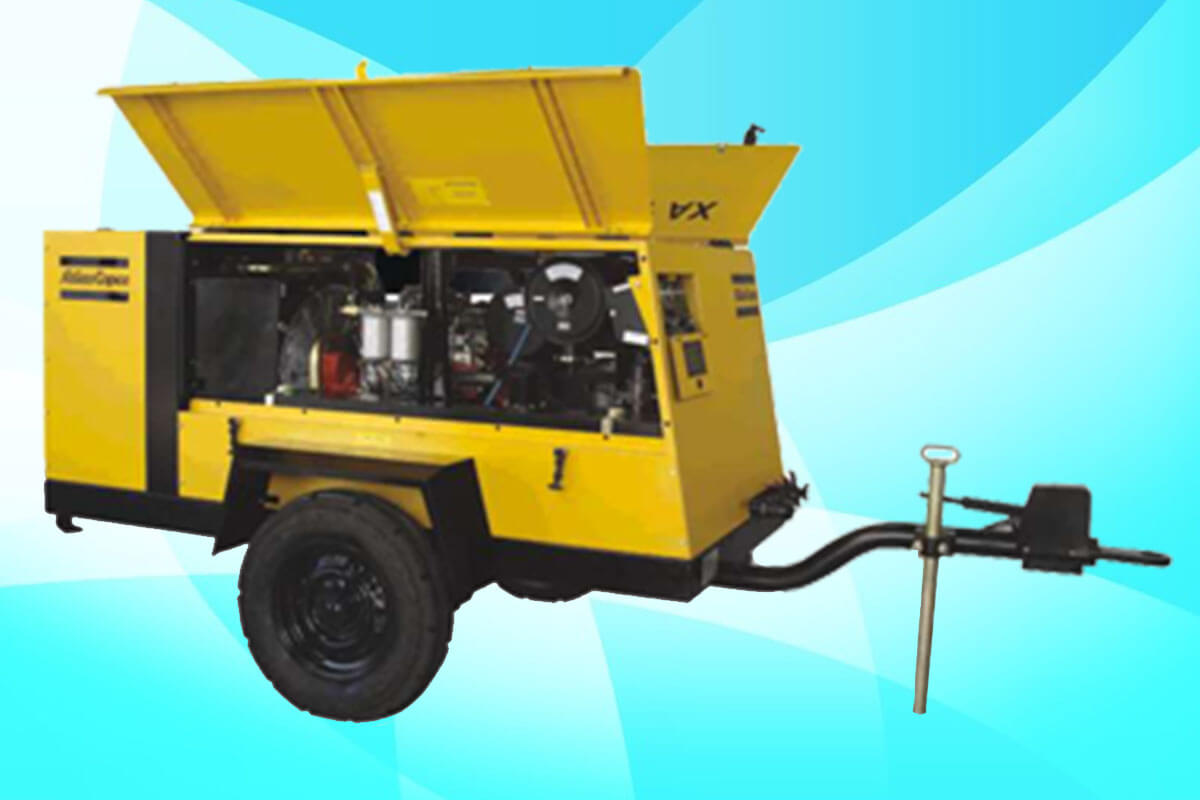

Compressors models XA146 – XA175 have been specially designed for heavy duty working environments such as the construction industry sandblasting, marble, granite, stone and quarries. They can assist in installing fibre optic cables, or be combined with combinations of pneumatic tools such as rock drills, brakes, to name a few. High altitudes and extremely

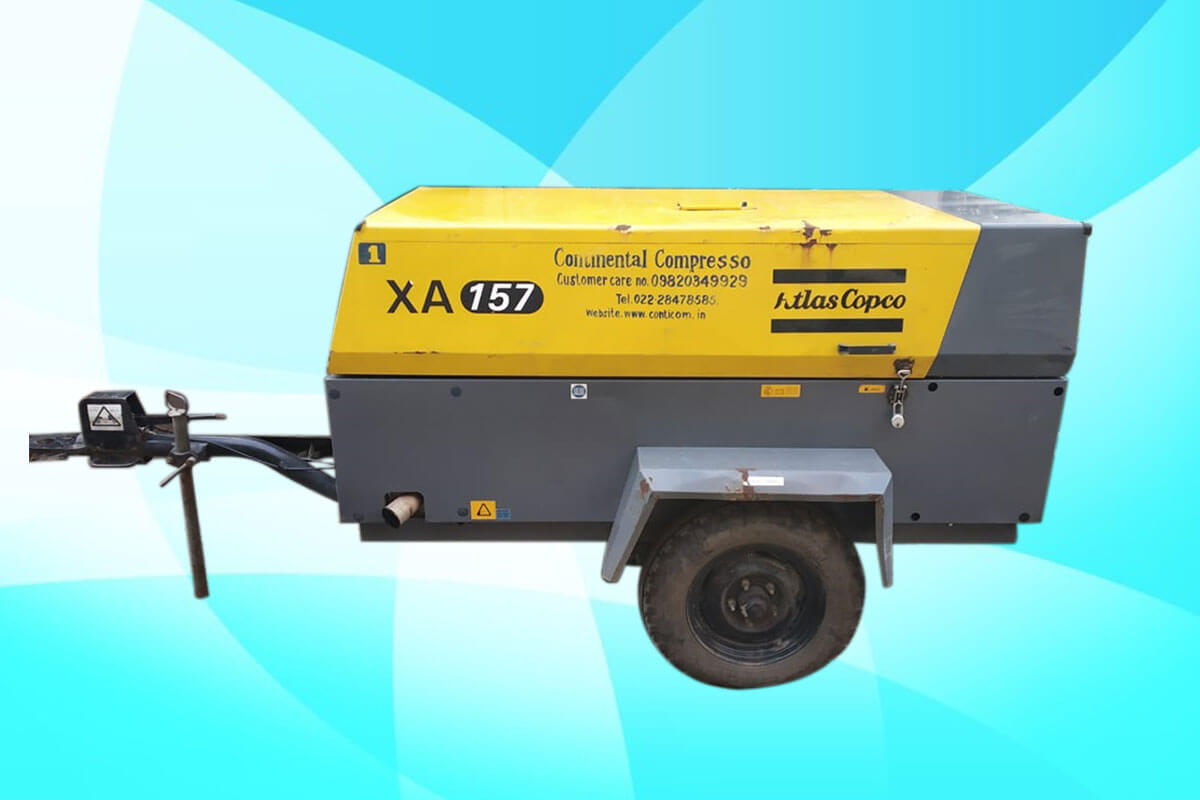

| PARAMETERS | XA 157 |
|---|---|
| Flow (CFM) | 330 |
| Pressure (PSI) | 100 |
| Engine | |
|---|---|
| Make | Ashok Leyland |
| Model | W04D |
| Power (HP) | 86 |
| No of cylinders | 4 |
| Dimensions & Weight | |
|---|---|
| Length (MM) | 3918 |
| Width (MM) | 1643 |
| Height (MM) | 1615 |
| Weight (KG) | 1520 |

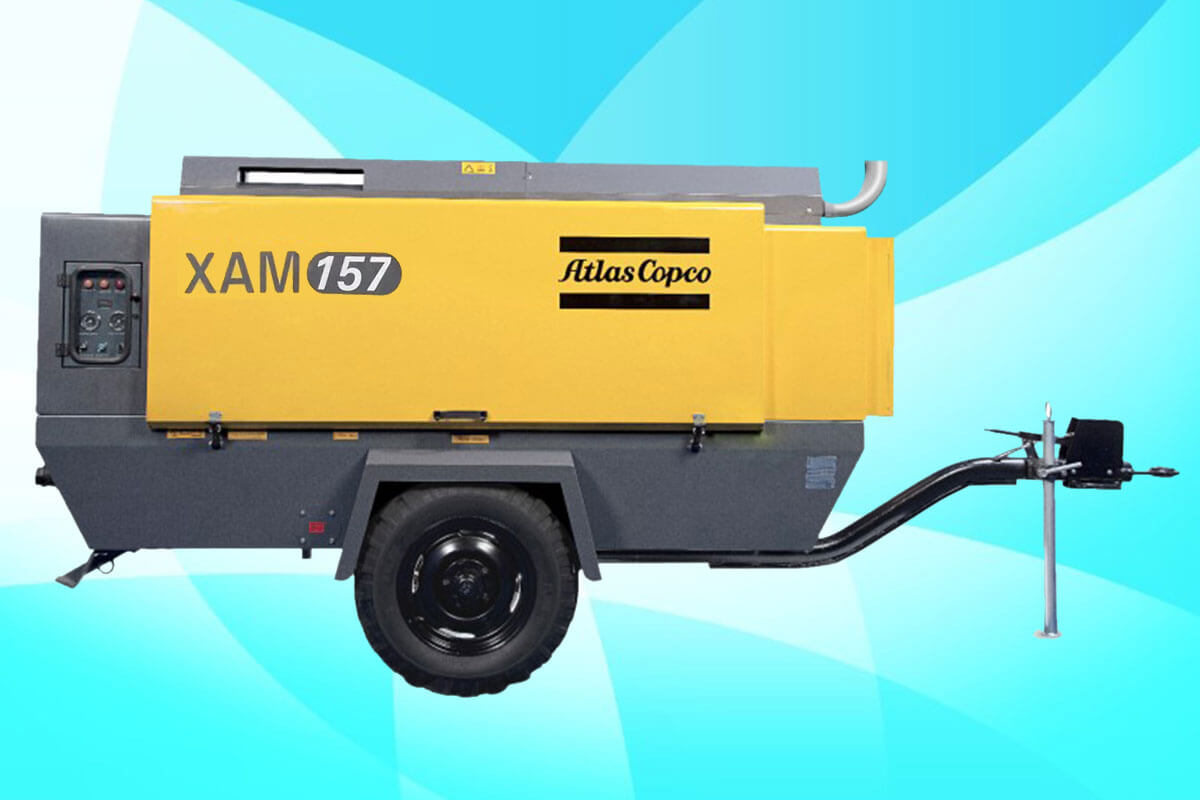

| PARAMETERS | XAM 157 |
|---|---|
| Flow (CFM) | 330 |
| Pressure (PSI) | 125 |
| Engine | |
|---|---|
| Make | Ashok Leyland |
| Model | W04CT |
| Power (HP) | 116 |
| No of cylinders | 4 |
| Dimensions & Weight | |
|---|---|
| Length (MM) | 3918 |
| Width (MM) | 1643 |
| Height (MM) | 1615 |
| Weight (KG) | 1520 |
Compressors models XAT 197 have been specially designed for heavy duty working environments such as the construction industry sandblasting, marble, granite, stone and quarries. They can assist in installing fibre optic cables, or be combined with combinations of pneumatic tools such as rock drills, brakes, to name a few. High altitudes and extremely
| Model | Normal Effective working pressure | Free air delivery | Engine Type | Length | Width | Height | Weight | Fuel Tank Capacity |
| Bar(e) | l/s | Cummins | mm | mm | mm | Kgs. | ltrs. | |
| XA 210H | 10.5 | 210 | 6 BTA 5.9 | 4064 | 2000 | 2085 | 2420 | 242 |
Medium Portable Diesel Compressors Are Available In Our Product Range It's Normal Effective Working Pressure From 100 Psi To 200 Psi At 7 Bar (e) To 14 Bar (e)
Application:
